Volvo EC250 D highlights

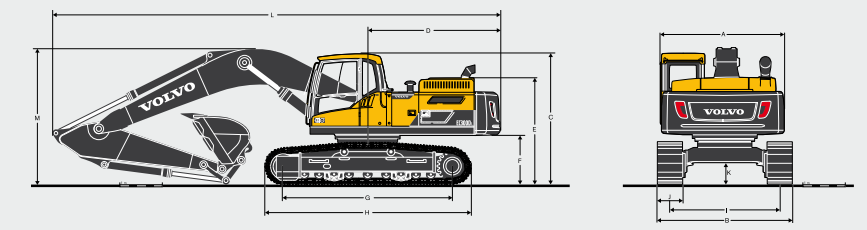

Description Unit EC250DL
Boom m, ft-in 6, 19’8″ mono or 5.95, 19’6″ 2-piece
Arm m, ft-in 2.5 8’2″ 2.97 9’9″ 3.6 11’10”
A Overall width of upper structure mm, ft-in 2 890 9’6″ 2 890 9’6″ 2 890 9’6″
B Overall width mm, ft-in 3 190 10’6″ 3 190 10’6″ 3 190 10’6″
C Overall height of cab mm, ft-in 2 990 9’10” 2 990 9’10” 2 990 9’10”
D Tail slew radius mm, ft-in 3 074 10’1″ 3 074 10’1″ 3 074 10’1″
E Overall height of engine hood mm, ft-in 2 431 8′ 2 431 8′ 2 431 8′
F Counterweight clearance * mm, ft-in 1 080 3’7″ 1 080 3’7″ 1 080 3’7″
G Tumbler length mm, ft-in 3 850 12’8″ 3 850 12’8″ 3 850 12’8″
H Track length mm, ft-in 4 650 15’3″ 4 650 15’3″ 4 650 15’3″
I Track gauge mm, ft-in 2 590 8’6″ 2 590 8’6″ 2 590 8’6″
J Shoe width mm, ft-in 600 24″ 600 24″ 600 24″
K Min. ground clearance * mm, ft-in 470 1’7″ 470 1’7″ 470 1’7″
L Overall length mm, ft-in 10 342 33’11” 10 262 33’8″ 10 328 33’11”
M Overall height of boom mm, ft-in 3 228 10’7″ 3 109 10’2″ 3 334 10’11”

* Without shoe grouser

Description Unit EC250D
Boom m, ft-in 6, 19’8″
Arm m, ft-in 2.5 8’2″  2.97 9’9″ 3.6 11’10”
A Max. digging reach mm, ft-in  9 880  32’5″ 10 260  33’8″  10 730 35’2″
B Max. digging reach on ground mm, ft-in  9 690  31’9″  10 080 33’1″  10 560  34’8″
C Max. digging depth mm, ft-in  6 500  21’4″  6 980 22’11” 7 600 24’11”
D Max. digging depth (I = 2440 mm level) mm, ft-in 6 280  20’7″ 6 740 22’1″  7 380  24’3″
E Max. vertical wall digging depth mm, ft-in  5 730 18’10”  5 970 19’7″  6 720  22’1″
F Max. cutting height mm, ft-in  9 620  31’7″ 9 690  31’9″  9 660  31’8″
G Max. dumping height mm, ft-in  6 700  22’0″  6 800  22’4″  6 820 22’5″
H Min. front swing radius mm, ft-in  3 910  12’10” 3 890 12’9″  3 890  12’9″
Digging forces with direct fit bucket
Bucket radius   mm, ft-in 1 537  61″  1 537  61″  1 537 61″
Breakout force –
 Normal SAE J1179 kN, lb 152  34,270  152  34,270  152  34,270
Power boost SAE J1179 kN, lb  166  37,290 166  37,290 166 37,290
bucket
 Normal ISO 6015 kN, lb  171 38,430  171  38,430 171  38,430
Power boost ISO 6015 kN, lb  186 41,810 186 41,810 186 41,810
Tearout force –
 Normal SAE J1179 kN, lb  133  29,940 115 25,890  103 23,130
Power boost SAE J1179 kN, lb  145  32,590  125 28,180  112 25,170
dipper arm
 Normal ISO 6015 kN, lb  137  30,850 118  26,550 105 23,640
Power boost ISO 6015 kN, lb  149 33,560 129  28,890 114 25,720
Rotation angle, bucket °  178    178    178

EC250 D key benefits

Demolition ready excavator rentals:

When you rent a Volvo EC250 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Power

When you rent a Volvo EC250 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Compact:

When you rent a Volvo EC250 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Visibility:

When you rent a Volvo EC250 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

Low operation noise:

When you rent a Volvo EC250 D from Rent1, it will come equipped with full cab quarding and a hydraulic thumb.

  • Larger commercial or residential structure demolition
  • Dig up sewage pipes or electrical conduit
  • Break up large areas of concrete with the hammer attachment
  • Backfill trenches
  • Dig trenches
  • Prepare grounds for landscaping
  • Remove debris from construction sites
  • Remove larger trees or stumps
  • Load sand and gravel
