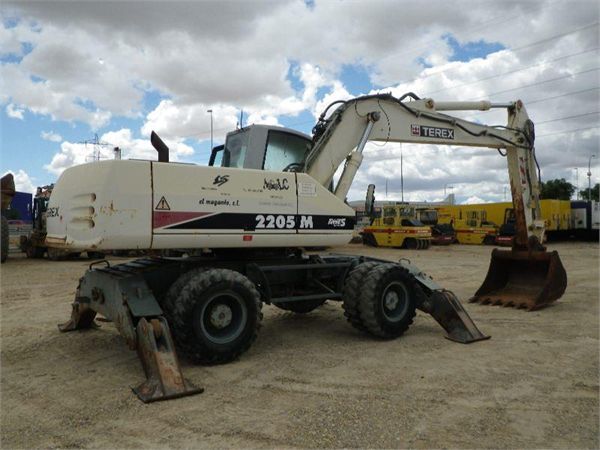

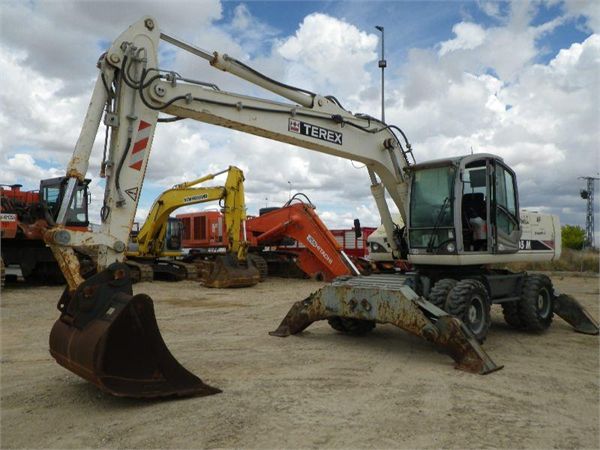

Terex 2205M (Tires)
| Daily | Weekly | Monthly | |
| Reg | $750 | $2,900 | $9,300 |
| Corp | $600 | $2,500 | $8,500 |
We honor the lowest rate on ALL rentas
Terex 2205M (Tires) highlights
| Shipping Dimensions (L x W x H) | |
| Two Piece Boom | 32′ 7″ x 9′ 0″ x 10′ 6″ (9.94 x 2.75 x 3.20 m) |
| One Piece Boom | 34′ 5″ x 9′ 0″ x 10′ 6″ (10.50 x 2.75 x 3.20 m) |
Working Range: Two Piece Boom 13′ 9″ (4.19 m)
| Standard stick | Optional stick | |||
| 7′ 3″ (2.21 m) | 8′ 10″ (2.69 m) | |||
| A | Stick height | ft./in. (mm) | 31′ 0″ (9450) | 32′ 4″ (9850) |
| D | Max. digging depth | ft./in. (mm) | 20′ 6″ (6250) | 22′ 2″ (6750) |
| F | Max. radius | ft./in. (mm) | 27′ 9″ (8450) | 29′ 0″ (8850) |
| G | Max. reach length | ft./in. (mm) | 32′ 8″ (9950) | 34′ 3″ (10 450) |
| H | Max. stick position | ft./in. (mm) | 9′ 0″ (2750) | 10′ 0″ (3050) |
| J | Max. outreach height | ft./in. (mm) | 35′ 11″ (10 950) | 37′ 3″ (11 350) |
| L | Bucket pivot point | ft./in. (mm) | 15′ 3″ (4650) | 16′ 9″ (5100) |
| Digging Forces | ||||
| Bucket | yd3 (l) | 1.49 (1140) | 1.49 (1140) | |
| Tear-out force | lbf (kN) | 28,550 (127) | 24,730 (110) | |
| Break-out force | lbf (kN) | 39,570 (176) | 39,570 (176) | |
| Weight | ||||
| Operating weight | lbs. (kg) | 46,297 (21 000) | 46,517 (21 100) | |
Working Range: One Piece Boom 19′ 0″ (5.79 m)
| Standard stick | Optional stick | |||
| 7′ 3″ (2.21 m) | 8′ 10″ (2.69 m) | |||
| A | Stick height | in. (mm) | 26′ 3″ (8000) | 26′ 9″ (8150) |
| D | Max. digging depth | in. (mm) | 19′ 2″ (5850) | 21′ 8″ (6600) |
| F | Max. radius | in. (mm) | 27′ 1″ (8260) | 28′ 8″ (8750) |
| G | Max. reach length | in. (mm) | 31′ 11″ (9720) | 33′ 10″ (10 300) |
| H | Max. stick position | in. (mm) | 17′ 1″ (5200) | 18′ 4″ (5600) |
| J | Max. outreach height | in. (mm) | 29′ 8″ (9050) | 31′ 8″ (9500) |
| L | Bucket pivot point | in. (mm) | 14′ 9″ (4500) | 15′ 7″ (4750) |
| Digging Forces | ||||
| Bucket | yd3 (I) | 1.75 (1340) | 1.49 (1140) | |
| Tear-out force | lbf (kN) | 28,780 (128) | 25,180 (112) | |
| Break-out force | lbf (kN) | 35,970 (160) | 35,970 (160) | |
| Weight | ||||
| Operating weight | lbs. (kg) | 45,636 (20 700) | 45,856 (20 800) | |
2205M key benefits
Demolition ready excavator rentals:
Power
Compact:
Visibility:
Low operation noise:
- Larger commercial or residential structure demolition
- Dig up sewage pipes or electrical conduit
- Break up large areas of concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Remove larger trees or stumps
- Load sand and gravel
- Travel quicker and easier with mobile technology
