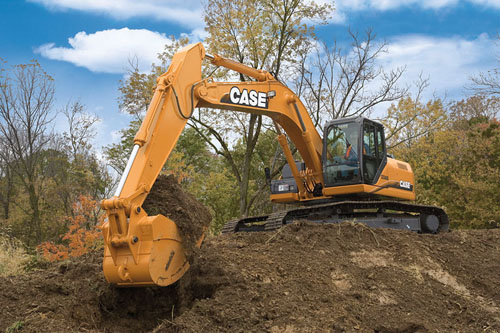

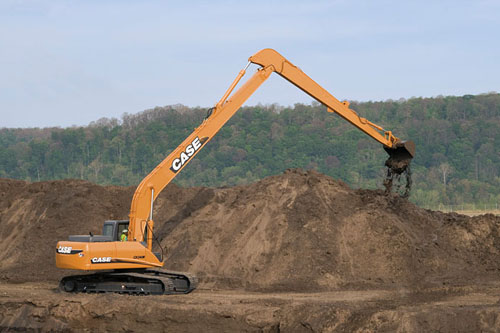

CASE CX240B
| Daily | Weekly | Monthly | |
| Reg | $725 | $2,900 | $9,300 |
| Corp | $600 | $2,500 | $8,500 |
We honor the lowest rate on ALL rentas
CASE CX240B highlights
| CX240B LC Mono | CX240B NLC Mono | |||||||
| DIPPER LENGTH | 2.50 m | 3.00 m | 3.52 m | 2.50 m | 3.00 m | 3.52 m | ||
| A | Overall height (with attachment) | m | 3.31 | 3.15 | 3.31 | 3.31 | 3.15 | 3.31 |
| B | Height (cab/handrail) | m | 3.00/3.02 | 3.00/3.02 | 3.00/3.02 | 3.00/3.02 | 3.00/3.02 | 3.00/3.02 |
| C | Overall lenght (with attachment) | m | 9.98 | 9.93 | 9.91 | 9.98 | 9.93 | 9.91 |
| D | Overall lenght (without attachment) | m | 5.27 | 5.27 | 5.27 | 5.27 | 5.27 | 5.27 |
| E | Width of upperstructure | m | 2.77 | 2.77 | 2.77 | 2.77 | 2.77 | 2.77 |
| F | Upperstructure ground clearance | m | 1.10 | 1.10 | 1.10 | 1.10 | 1.10 | 1.10 |
| G | Swing radius (rear end) | m | 2.94 | 2.94 | 2.94 | 2.94 | 2.94 | 2.94 |
| H | Track overall lenght | m | 4.65 | 4.65 | 4.65 | 4.65 | 4.65 | 4.65 |
| I | Centre idler to centre sprocket | m | 3.84 | 3.84 | 3.84 | 3.84 | 3.84 | 3.84 |
| J | Track gauge | m | 2.59 | 2.59 | 2.59 | 2.39 | 2.39 | 2.39 |
| K | Track shoe width standard | mm | 600 | 600 | 600 | 600 | 600 | 600 |
| L | Track overall width – 600mm shoes | m | 3.19 | 3.19 | 3.19 | 2.99 | 2.99 | 2.99 |
| – 700mm shoes | m | 3.29 | 3.29 | 3.29 | – | – | – | |
| – 800mm shoes | m | 3.39 | 3.39 | 3.39 | – | – | – | |
| N | Ground clearance | m | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 | 0.46 |
| DIPPER LENGTH | 2.50 m | 3.00 m | 3.52 m | ||
| A | Maximum digging reach | m | 9.82 | 10.28 | 10.79 |
| B | Maximum digging reach at ground level | m | 9.63 | 10.10 | 10.62 |
| C | Maximum digging depth | m | 6.40 | 6.90 | 7.42 |
| D | Digging depth – 2.44 m level bottom | m | 6.21 | 6.74 | 7.27 |
| E | Max dump height | m | 6.55 | 6.76 | 7.06 |
| F | Overall reach height | m | 9.56 | 9.76 | 10.07 |
| G | Minimum swing radius – attachment | m | 3.98 | 3.95 | 3.95 |
| H | Vertical straight wall dig depth | m | 5.70 | 6.14 | 6.68 |
| Digging force – w/o Power Boost | daN | 14 100 | 12 000 | 10 700 | |
| – with Power Boost | daN | 15 100 | 12 900 | 11 500 | |
| Breakout force – w/o Power Boost | daN | 16 200 | 16 200 | 16 200 | |
| – with Power Boost | daN | 17 400 | 17 400 | 17 400 | |
CX240B key benefits
Demolition ready excavator rentals:
Power
Compact:
Visibility:
Low operation noise:
- Larger commercial or residential structure demolition
- Dig up sewage pipes or electrical conduit
- Break up large areas of concrete with the hammer attachment
- Backfill trenches
- Dig trenches
- Prepare grounds for landscaping
- Remove debris from construction sites
- Remove larger trees or stumps
- Load sand and gravel
